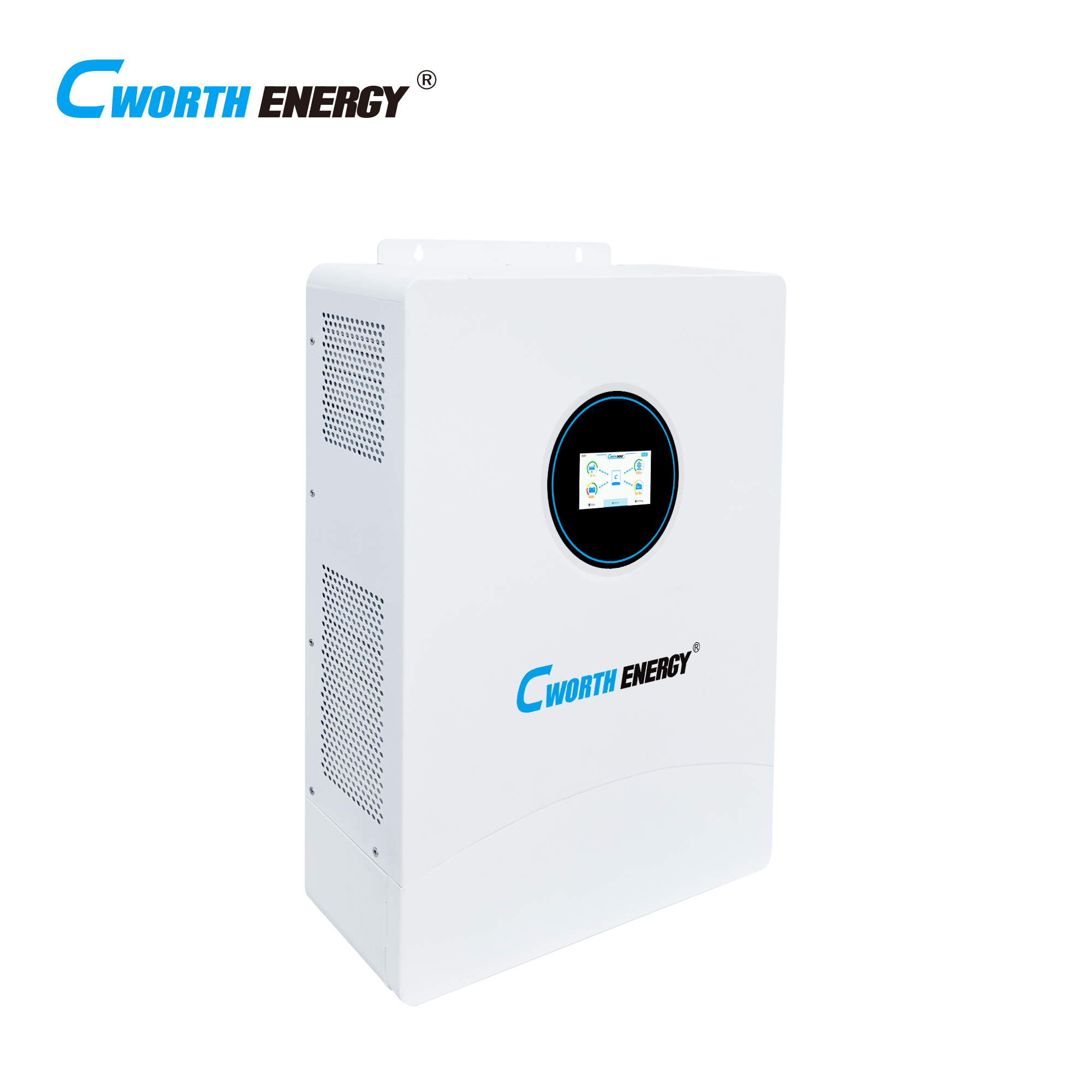

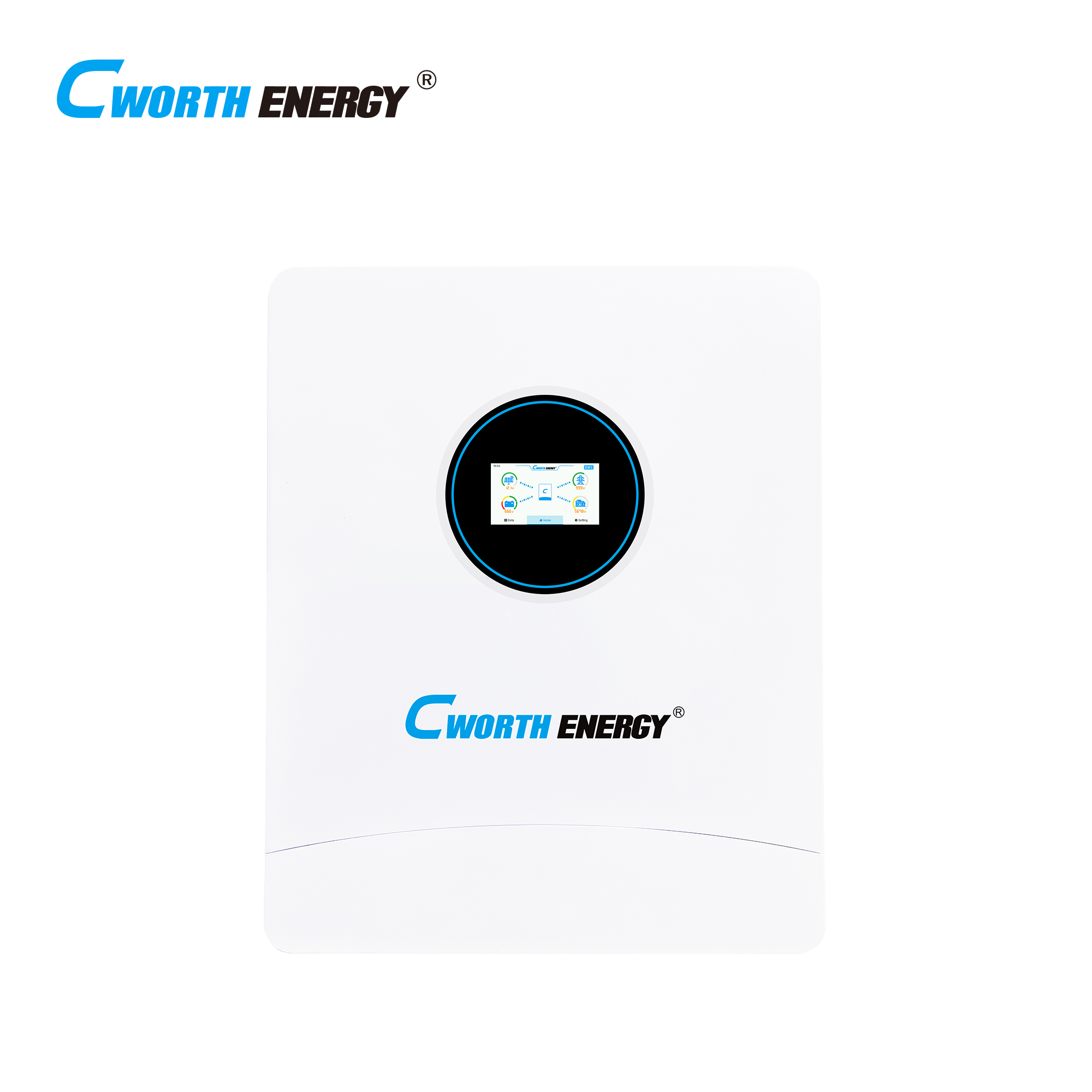

12KW Inverter Cworth energy CE-H12K-TS5

The CE-H12K-TS5 is a high-frequency 12KVA solar inverter designed for reliable off-grid and hybrid solar power systems. It delivers pure sine wave output and supports operation with or without batteries, making it suitable for residential and commercial solar installations. With dual MPPT solar charge controllers and smart load management, the inverter ensures efficient energy conversion and stable power supply for a wide range of applications.

Advantages:
• Pure sine wave inverter output for stable and clean electricity.
• Supports inverter operation without battery.
• Single-phase parallel system that does not require parallel batteries.
• Lithium battery activation function.
• Intuitive and user-friendly operation interface.
• Two AC outputs with smart load management.
• Two built-in MPPT solar charge controllers.
• Compatible with utility grid or generator power.
• Parallel connection support for up to 12 units.
• Protection against overload, over-temperature and short circuit.

Specifications:
• Rated Output Power: 12000W
• Nominal DC Input Voltage: 48V
• DC Input Voltage Range: 42–58Vdc
• Battery Type: AGM / Lithium / Others
• Nominal Output Voltage: 230Vac
• Output Frequency: 50Hz / 60Hz (Adjustable)
• Output Waveform: Pure Sine Wave
• Maximum PV Open Circuit Voltage: 500V
• PV Operating Voltage Range: 85V–450V
• Maximum PV Input Current: 27A + 27A
• Maximum Charging Current (PV + Grid): 210A
• AC Input Voltage Range: 90–280Vac
• Transfer Time: 10ms (UPS) / 20ms (Appliances)
• Peak Efficiency: ≥93%
• Parallel Capability: Up to 12 units
• Operating Temperature: -10°C to 50°C
• Net Weight: 30kg
• Dimensions: 645 × 535 × 140 mm
