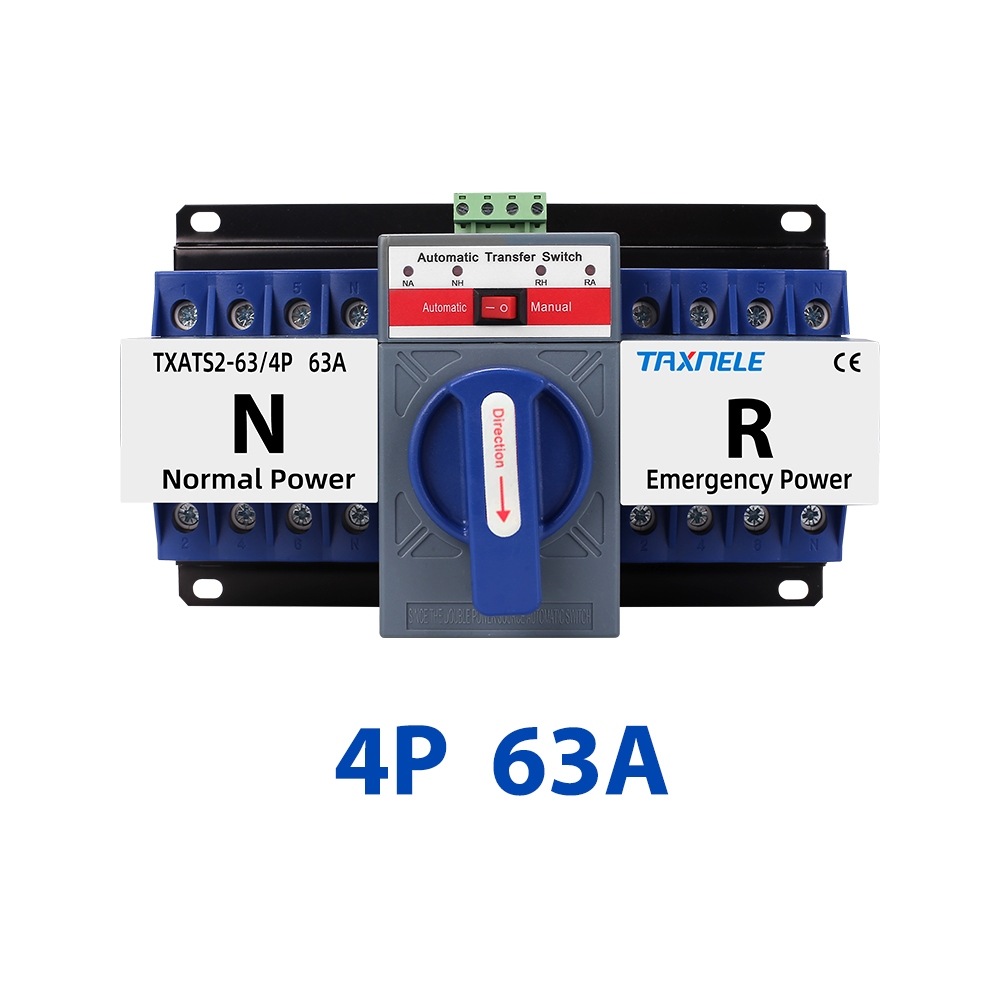

TAXNELE ATS Dual Power Automatic Transfer Switch 2P / 4P 63 A

The TAXNELE ATS is a dual‑power automatic transfer switch that automatically transfers a load between two power sources (e.g., grid and generator). It supports both 2‑pole (single‑phase) and 4‑pole (three‑phase) configurations and is suitable for residential, commercial, and light industrial applications.

Specifications:

Pole Configuration: 2P / 4P

Rated Current: 63 A

Rated Operating Voltage: AC 230 V (single‑phase) / ~380–440 V (three‑phase)

Insulation Voltage: 690 V AC

Frequency: 50 / 60 Hz

Use Category: PC class (can switch under load safely)

Transfer Time: < 50 ms (automatic switching)

Standards: IEC 60947‑6‑1 compliant

Operation Modes: Automatic and Manual

Mounting: Standard 35 mm DIN rail

Application: Automatic switching between main and backup power to maintain continuous supply.
