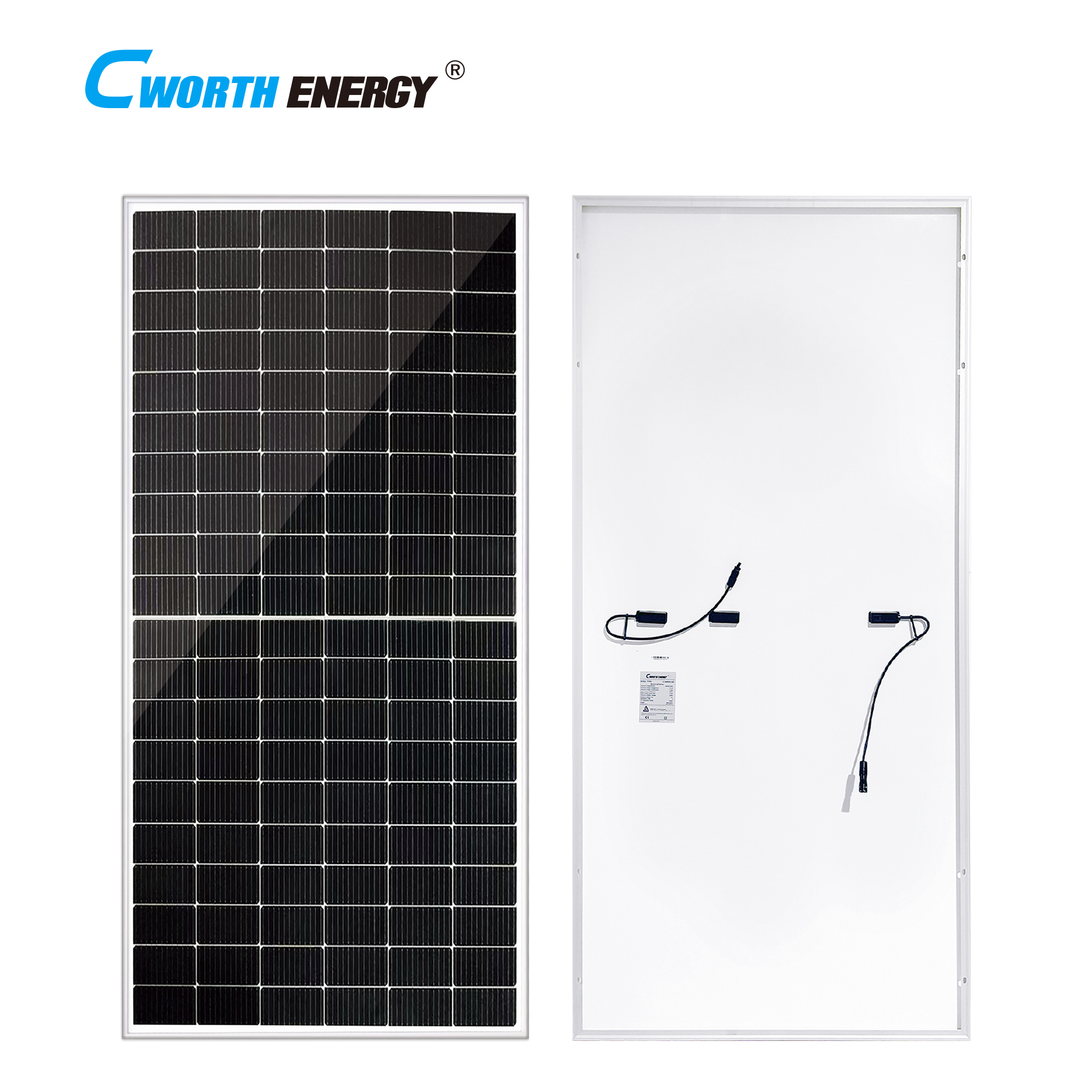

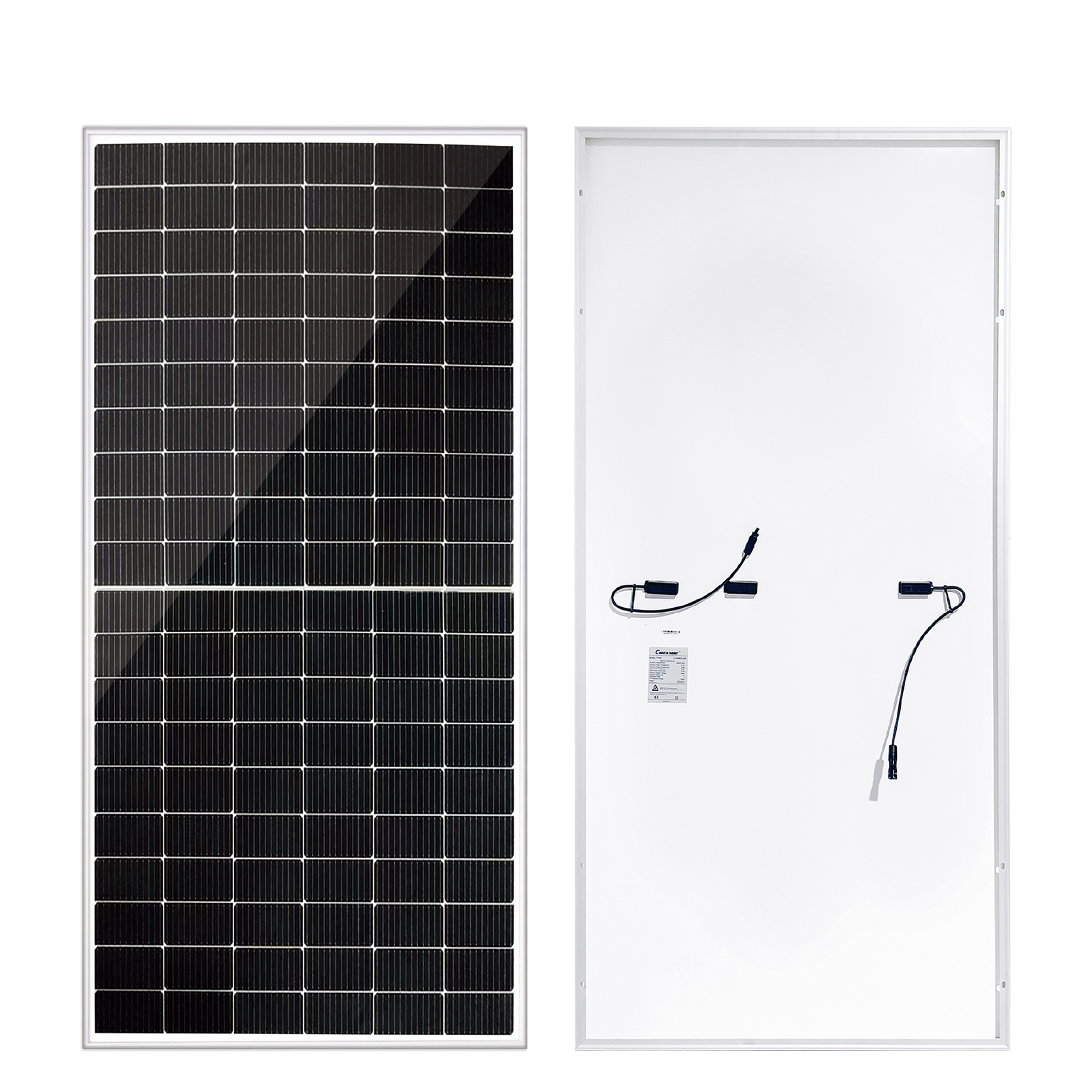

500W Mono Half Cell Solar Panel

Specifications:
• Module Type: CE-M500W
• Maximum Power(Pmax): 500W(0~±5W)
• Maximum Power Voltage (Vmp): 40.65V
• Maximum Power Current (Imp): 12.3A
• Open-circuit Voltage (Voc): 48.2V
• Short-circuit Current (Isc): 13.01A
• Module Efficiency STC (%): ≥23%
• Operating Temperature (℃): -40°C~+85°C
• Maximum System Voltage: 1000/1500VDC(IEC)
• Maximum Series Fuse Rating: 30A
• Power Tolerance: 0~+3%
• Temperature Coefficients of Pmax: -0.35%/°C
• Nominal Operating Cell Temperature(NOCT): 45±2°C
• Product Dimension: 1908×1134×30mm
• Weight: 22.5kg
• Module Type: CE-M500W
• Maximum Power(Pmax): 500W(0~±5W)
• Maximum Power Voltage (Vmp): 40.65V
• Maximum Power Current (Imp): 12.3A
• Open-circuit Voltage (Voc): 48.2V
• Short-circuit Current (Isc): 13.01A
• Module Efficiency STC (%): ≥23%
• Operating Temperature (℃): -40°C~+85°C
• Maximum System Voltage: 1000/1500VDC(IEC)
• Maximum Series Fuse Rating: 30A
• Power Tolerance: 0~+3%
• Temperature Coefficients of Pmax: -0.35%/°C
• Nominal Operating Cell Temperature(NOCT): 45±2°C
• Product Dimension: 1908×1134×30mm
• Weight: 22.5kg
