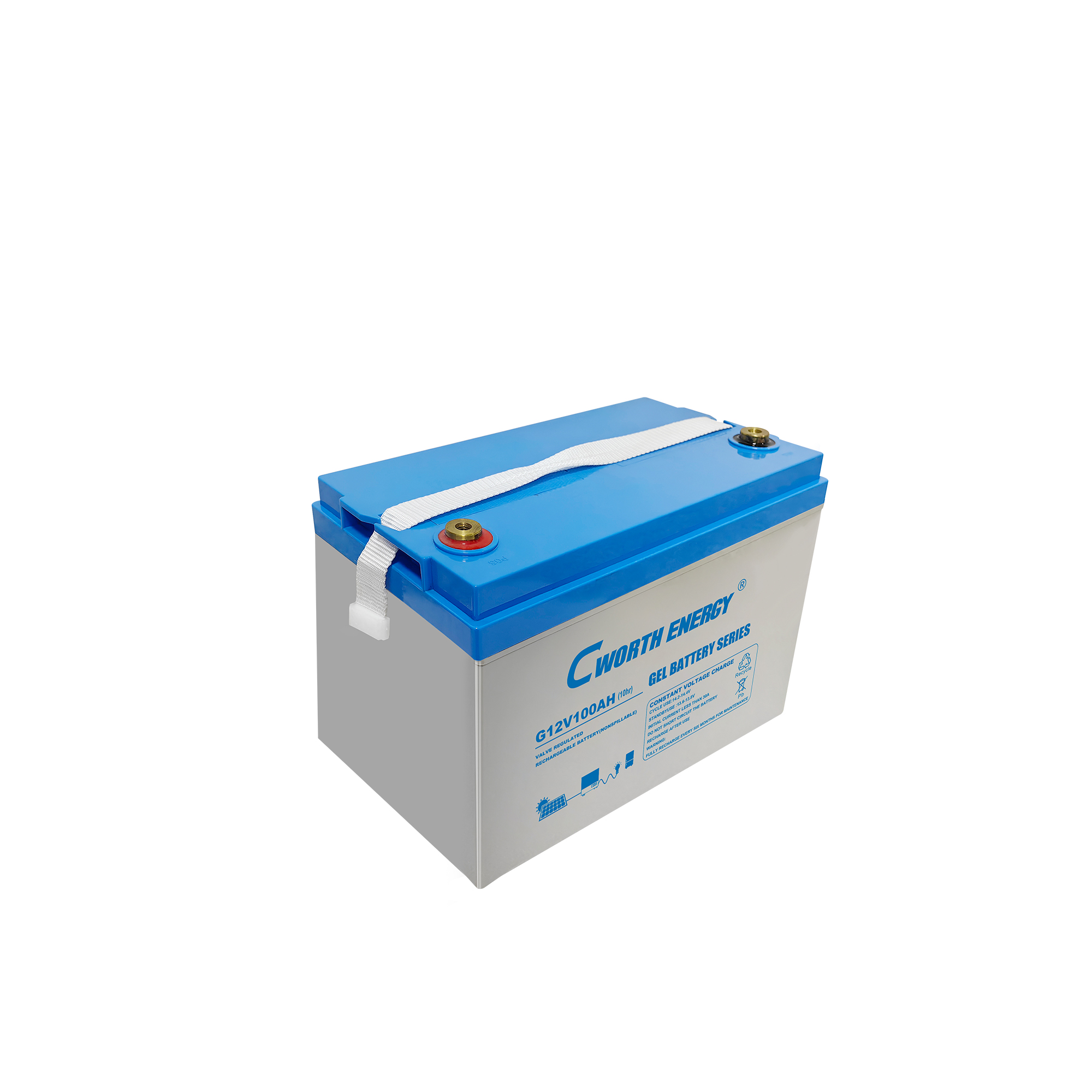

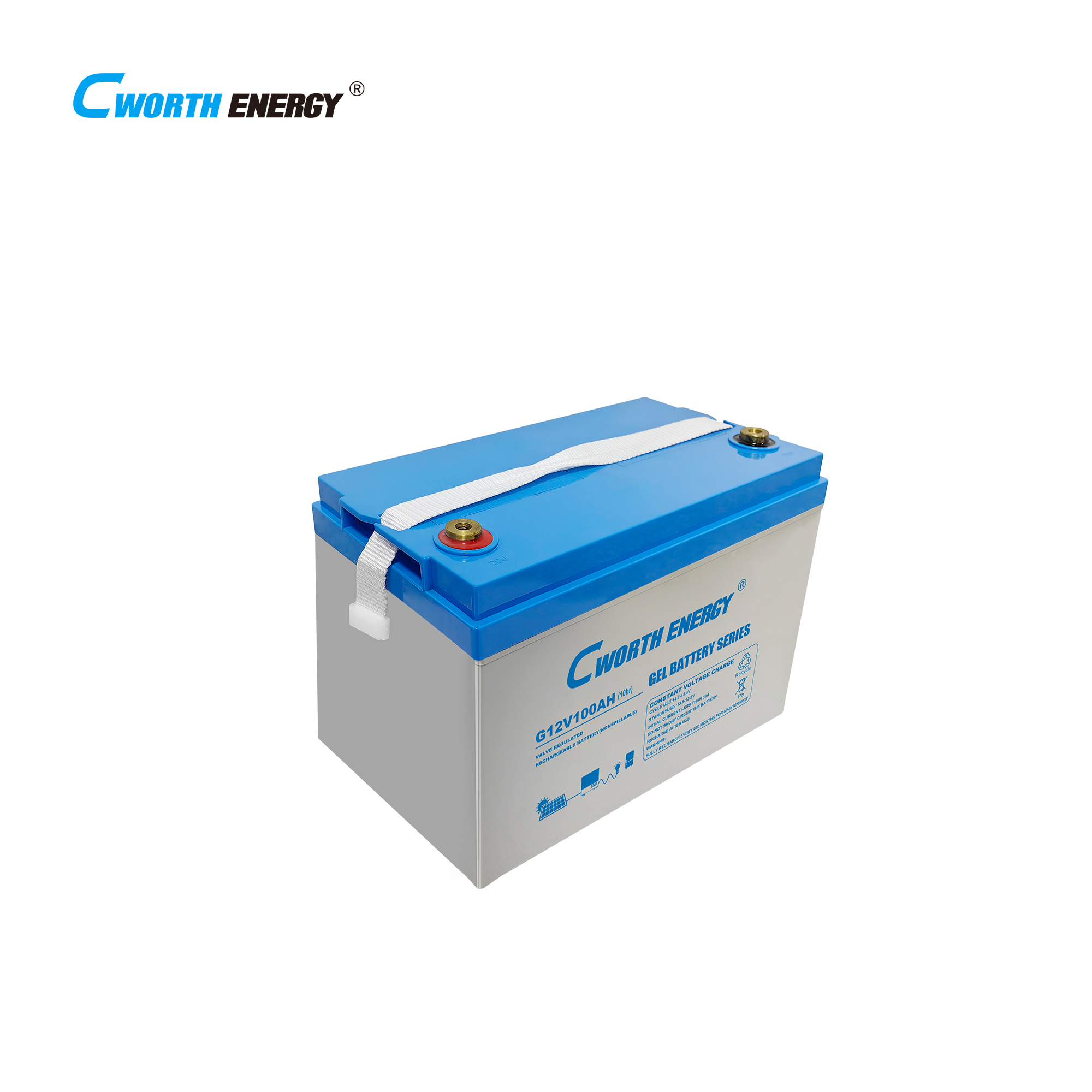

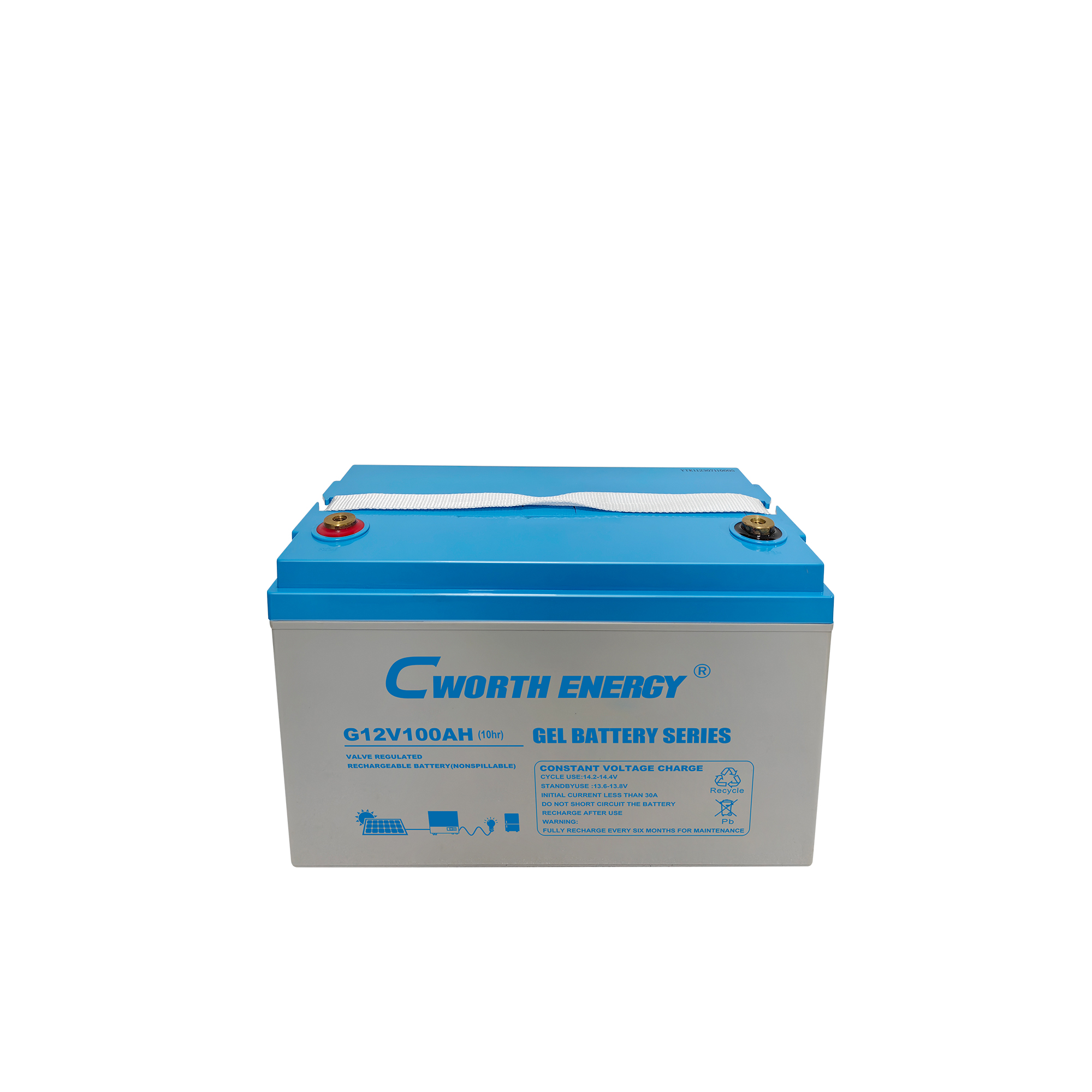

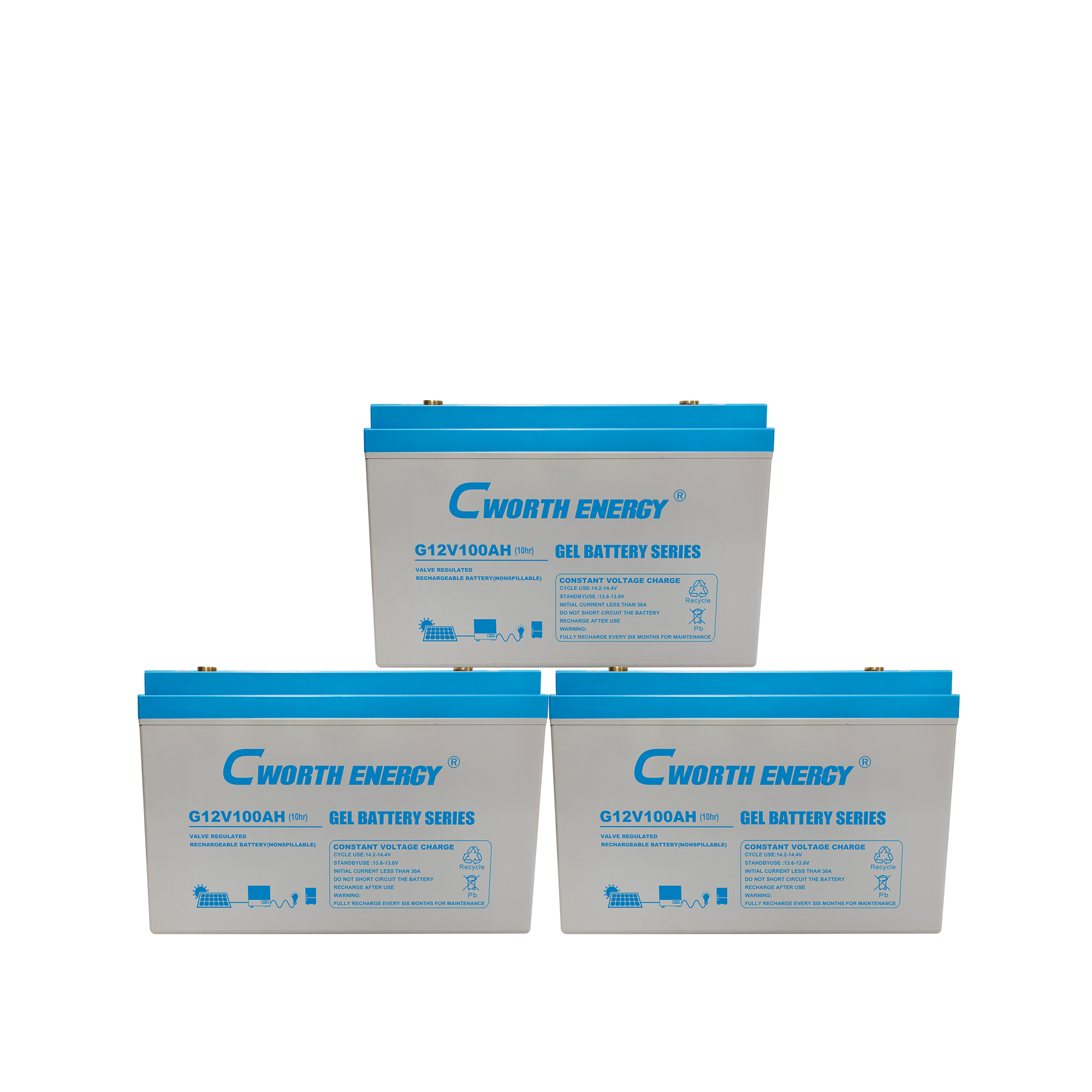

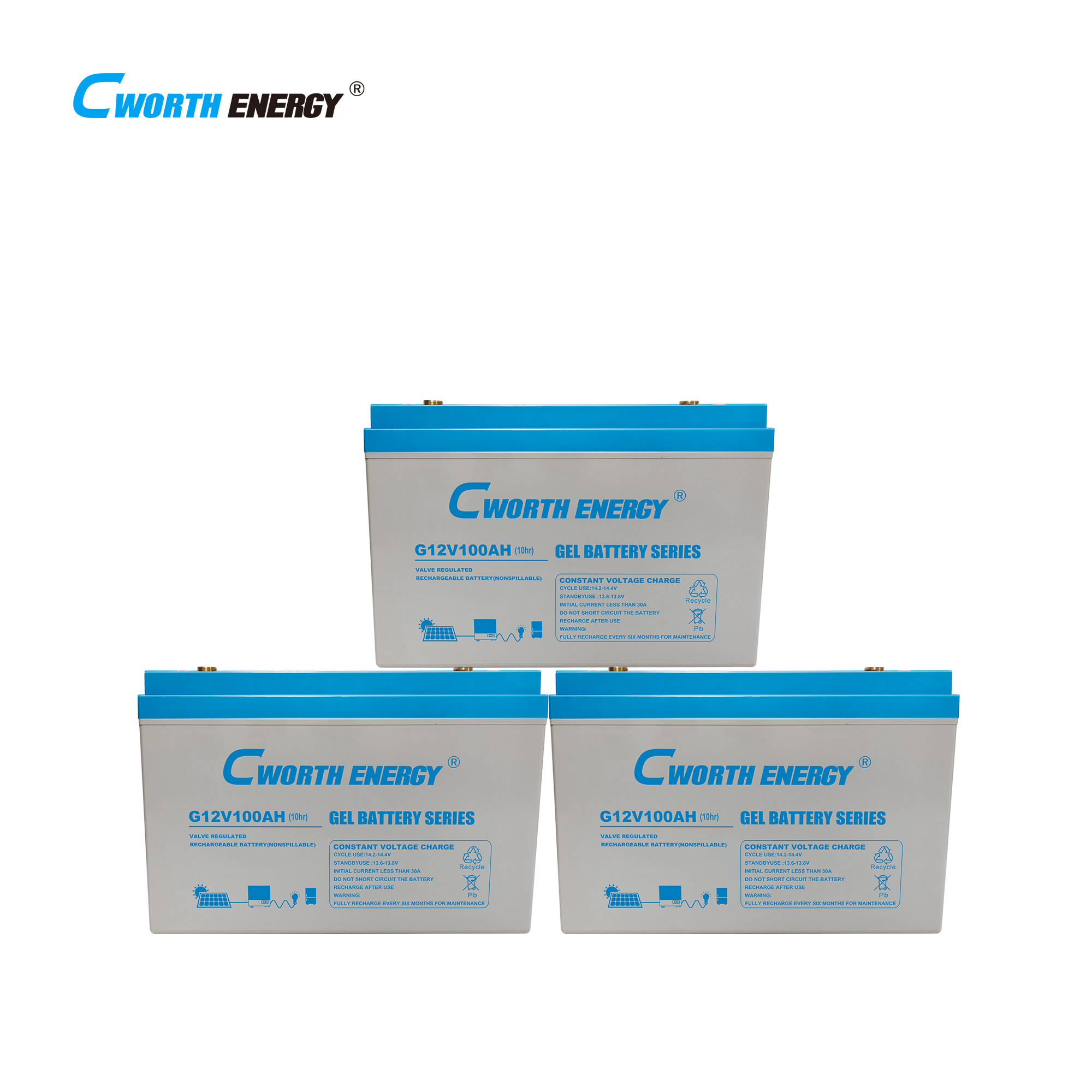

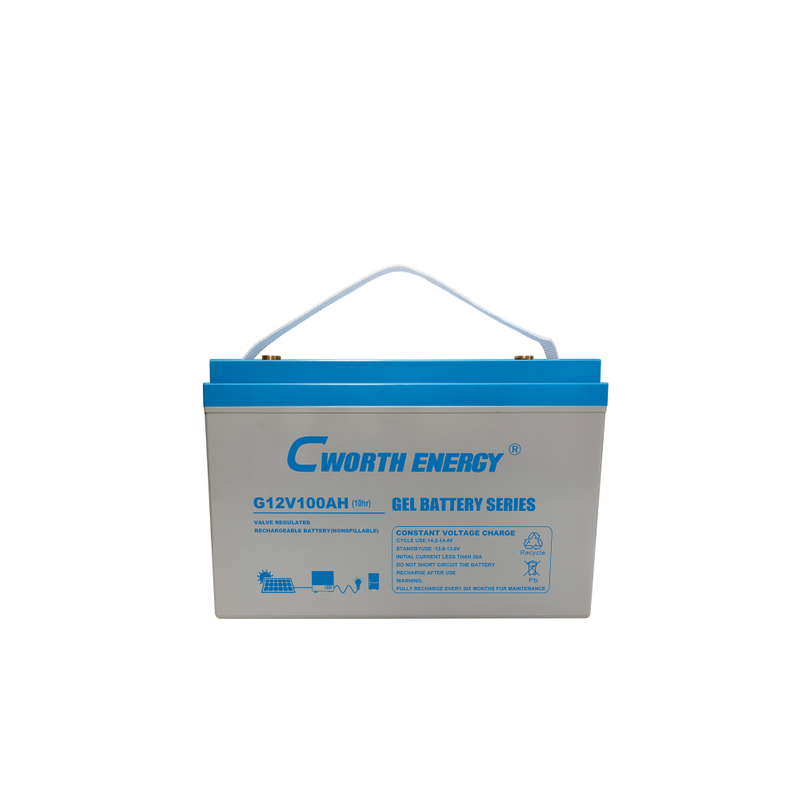

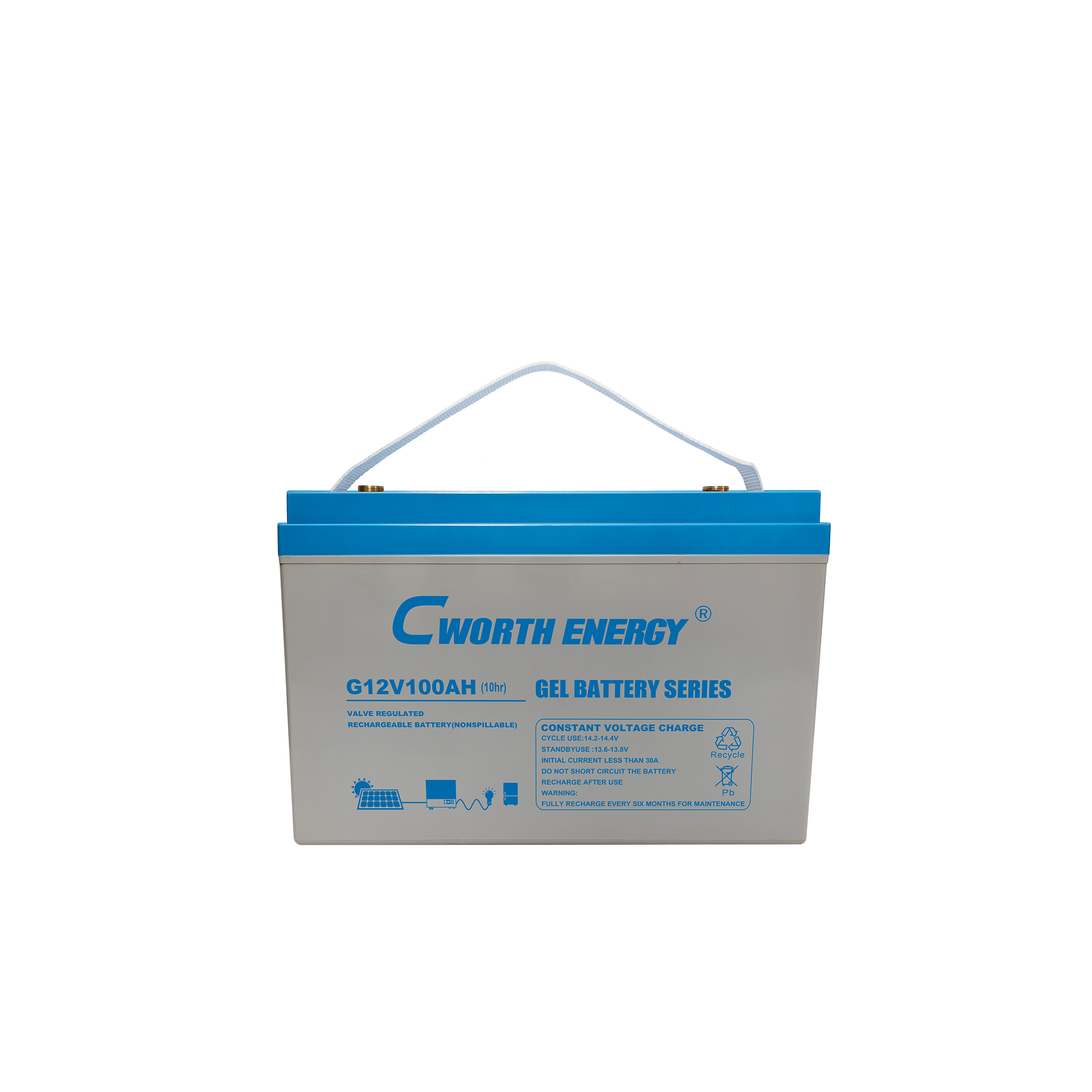

Gel Battery G12V 100AH
Product details

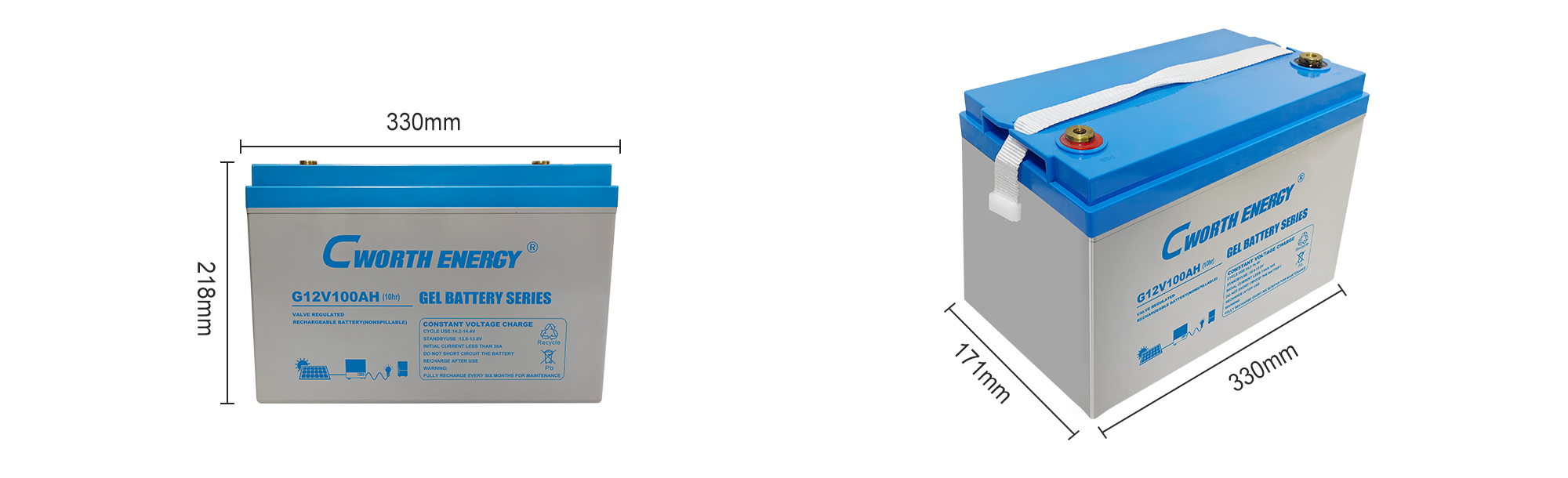

Specifications: • Model: G-12V 100AH • Cells Per Unit: 6 • Voltage Per Unit: 12 • Capacity: 100Ah@10hr-rate to 1.80V per cell @25℃ • Max. Discharge Current: 1000A(5 sec) • Internal Resistance: Approx. 5.0Ω • Recommended Maximum Charging Current Limit: 30A • Operating Temperature Range: Discharge: -20℃~60℃ Charge: 10℃~50℃ Storage: -20℃~60℃ • Normal Operating Temperature Range: 25℃±5℃ • Float Charging Voltage: 13.6 to 13.8V DC/unit Average at 25℃ • Equalazation and Cycle Sevice: 14.4 to 14.6V DC/unit Average at 25℃ • Self Discharge: GEL batteries can be stored for more than 6 month at 25℃. Self-discharge ratio less than 3% per month at 25℃. Please charge batteries before using. • Weight: 27.8kg • Size: 330×171×218mm • Model: G-12V 100AH • Cells Per Unit: 6 • Voltage Per Unit: 12 • Capacity: 100Ah@10hr-rate to 1.80V per cell @25℃ • Max. Discharge Current: 1000A(5 sec) • Internal Resistance: Approx. 5.0Ω • Recommended Maximum Charging Current Limit: 30A • Operating Temperature Range: Discharge: -20℃~60℃ Charge: 10℃~50℃ Storage: -20℃~60℃ • Normal Operating Temperature Range: 25℃±5℃ • Float Charging Voltage: 13.6 to 13.8V DC/unit Average at 25℃ • Equalazation and Cycle Sevice: 14.4 to 14.6V DC/unit Average at 25℃ • Self Discharge: GEL batteries can be stored for more than 6 month at 25℃. Self-discharge ratio less than 3% per month at 25℃. Please charge batteries before using. • Weight: 27.8kg • Size: 330×171×218mm
