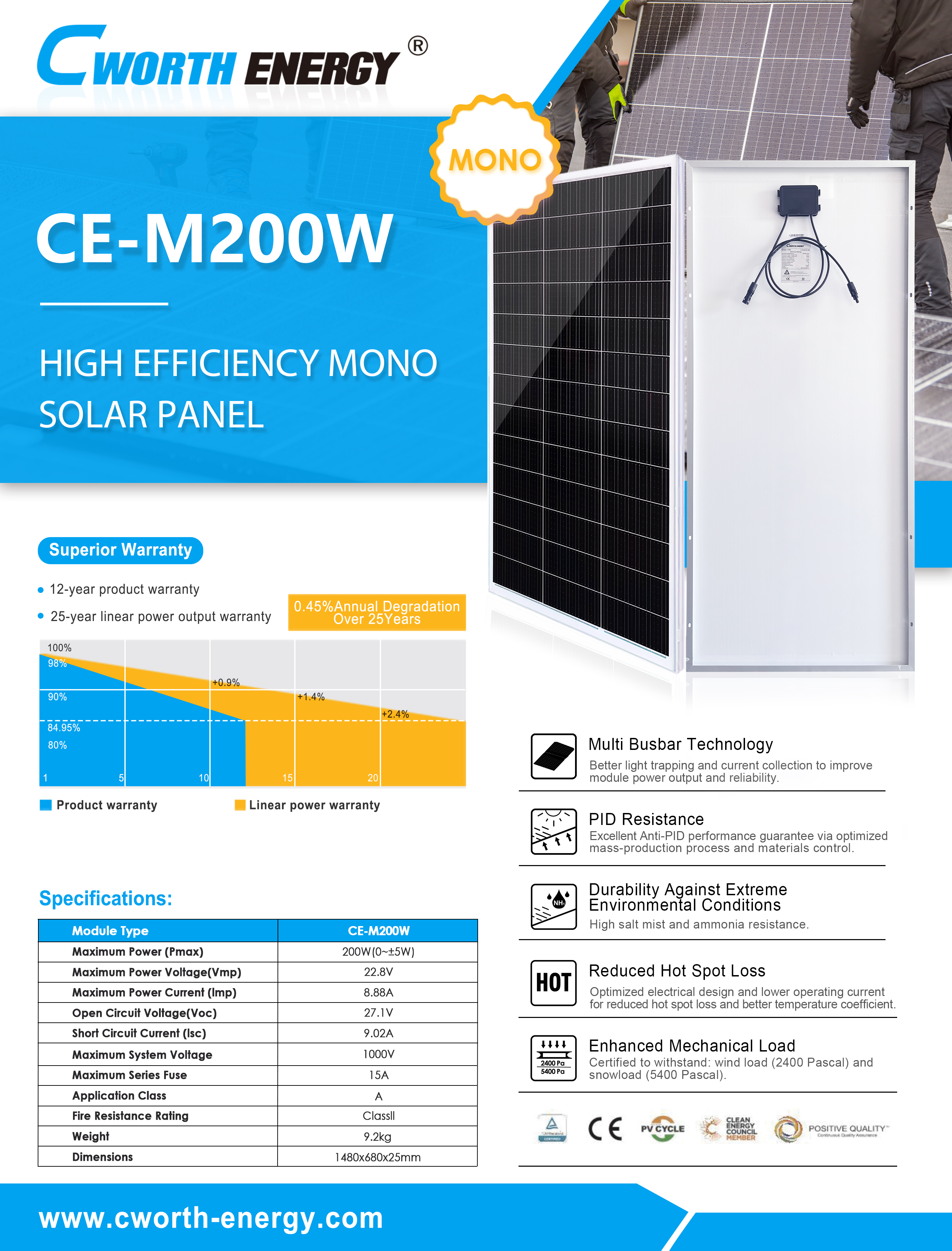

CE-M200W Mono Solar Panel

Specifications:
• Module Type: CE-M200W
• Maximum Power(Pmax): 200W(0~±5W)
• Maximum Power Voltage (Vmp): 22.8V
• Maximum Power Current (Imp): 8.88A
• Open-circuit Voltage (Voc): 27.1V
• Short-circuit Current (Isc): 9.02A
• Operating Temperature (℃): -40°C~+85°C
• Maximum System Voltage: 1000V
• Maximum Series Fuse Rating: 15A
• Power Tolerance: 0~+3%
• Temperature Coefficients of Pmax: -0.35%/°C
• Product Dimension: 1480×680×25 mm
• Weight: 9.2kg
• Module Type: CE-M200W
• Maximum Power(Pmax): 200W(0~±5W)
• Maximum Power Voltage (Vmp): 22.8V
• Maximum Power Current (Imp): 8.88A
• Open-circuit Voltage (Voc): 27.1V
• Short-circuit Current (Isc): 9.02A
• Operating Temperature (℃): -40°C~+85°C
• Maximum System Voltage: 1000V
• Maximum Series Fuse Rating: 15A
• Power Tolerance: 0~+3%
• Temperature Coefficients of Pmax: -0.35%/°C
• Product Dimension: 1480×680×25 mm
• Weight: 9.2kg
