Cworth Energy
Batteries

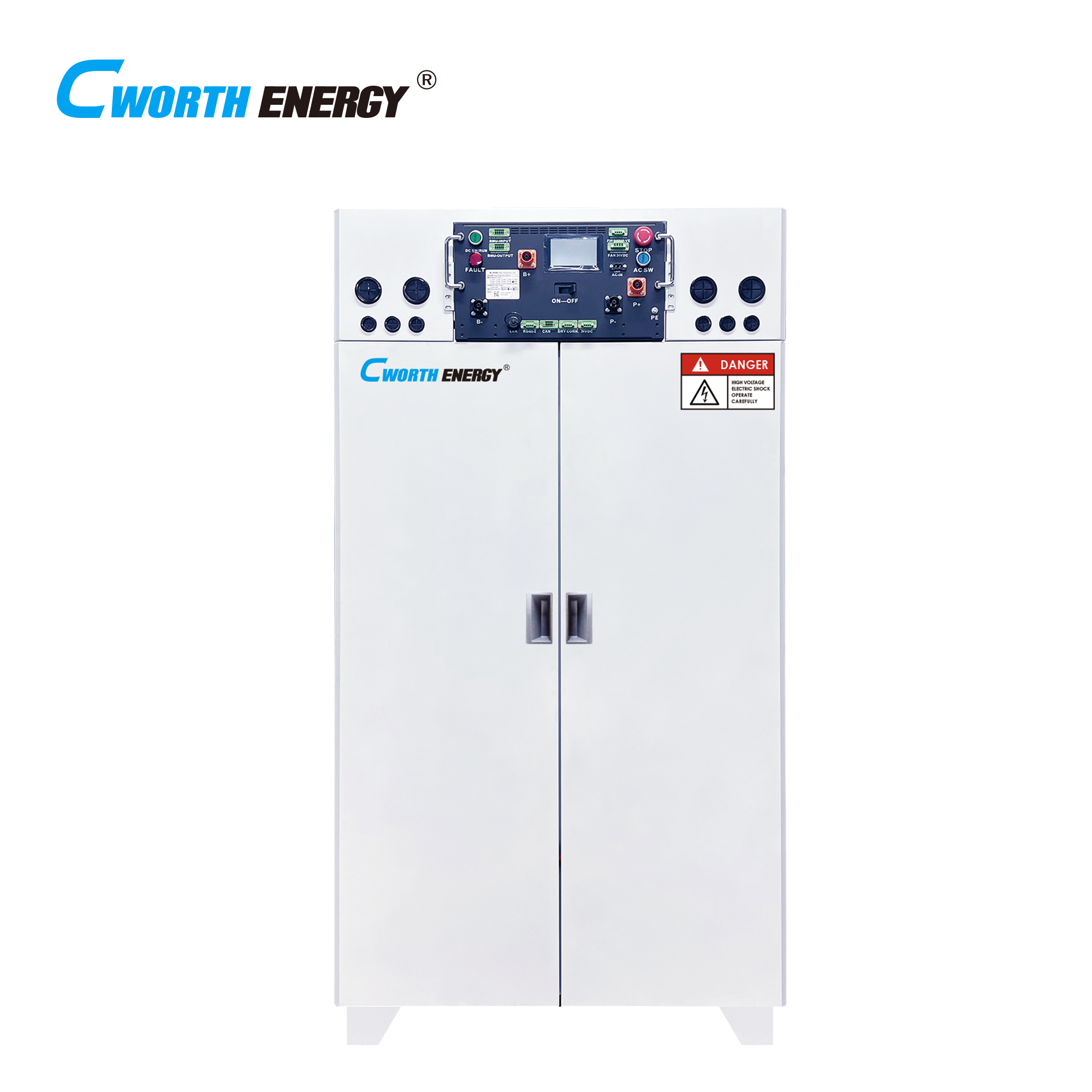

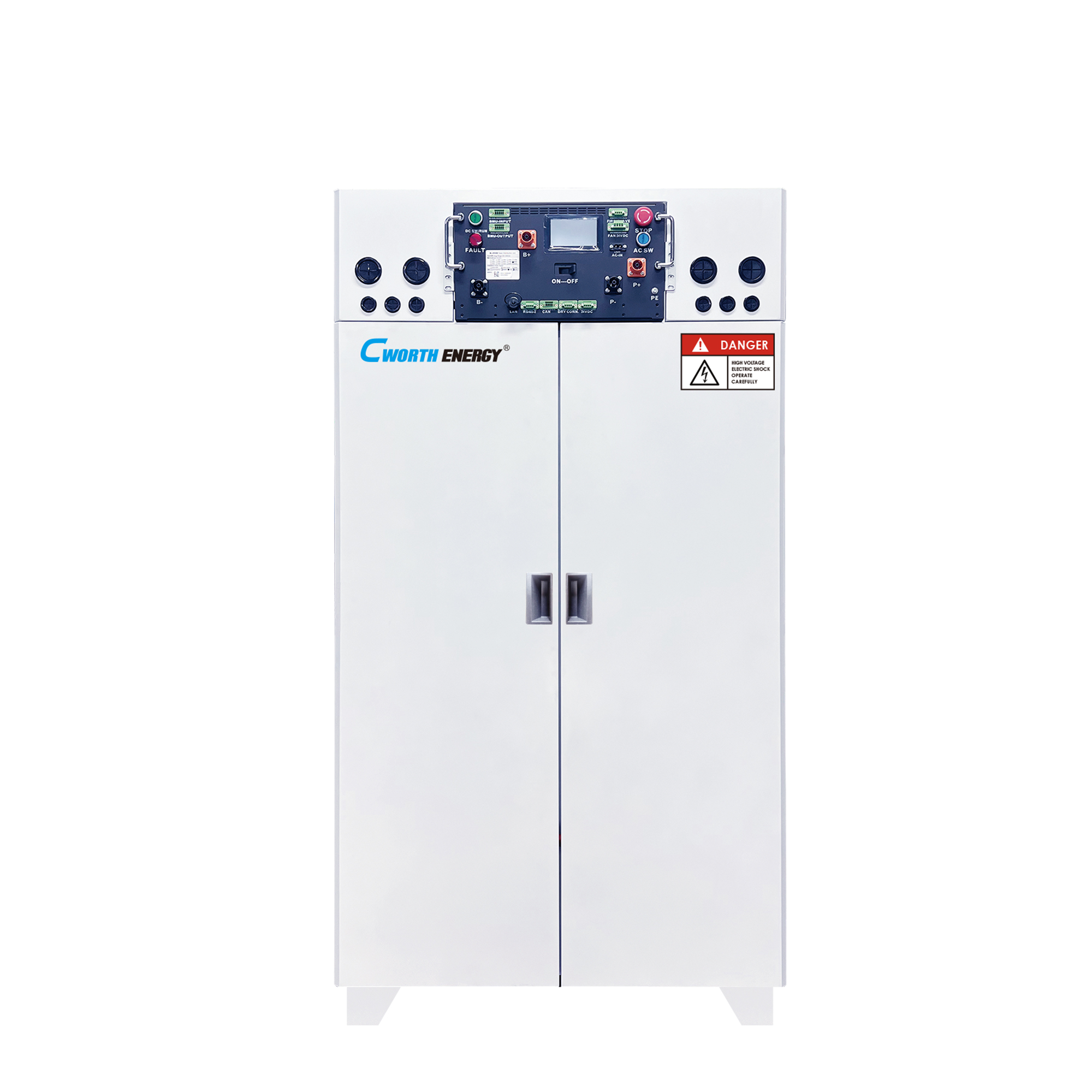

Rack-mounted Battery Cluster 150KWH
Product details
Specifications: • Model: CE-LBV-300512 • Battery Capacity: 150KWH • Cell Type: LFP（LiFePO4） • Number of Modules: 10 • Battery Cell Configuration: （16S）10S1P • Rated Voltage: 512V • Minimum Voltage: 448V • Working Voltage Range: 448-584V • Maximum Voltage: 584V • Suggested Charging and Discharging Currents: ≤60A • Maximum Charging and Discharging Current: 100A • Maximum Power of Charging and Discharging: 50KW • Working Temperature Range: Charge:0~60℃ Discharge:-30~60℃ • Relative Humidity (RH): 0~95% • Optimal Storage Temperature Range: 10~35℃ • Maximum Working Altitude (m): 2000 • Communication Method: CAN • Number of Cycles: ≥6000@80%DOD，25℃ 0.5C • Installation Method: Ground installation • Protection Grade: IP21 • Transportation: UN38.3 • Model: CE-LBV-300512 • Battery Capacity: 150KWH • Cell Type: LFP（LiFePO4） • Number of Modules: 10 • Battery Cell Configuration: （16S）10S1P • Rated Voltage: 512V • Minimum Voltage: 448V • Working Voltage Range: 448-584V • Maximum Voltage: 584V • Suggested Charging and Discharging Currents: ≤60A • Maximum Charging and Discharging Current: 100A • Maximum Power of Charging and Discharging: 50KW • Working Temperature Range: Charge:0~60℃ Discharge:-30~60℃ • Relative Humidity (RH): 0~95% • Optimal Storage Temperature Range: 10~35℃ • Maximum Working Altitude (m): 2000 • Communication Method: CAN • Number of Cycles: ≥6000@80%DOD，25℃ 0.5C • Installation Method: Ground installation • Protection Grade: IP21 • Transportation: UN38.3
