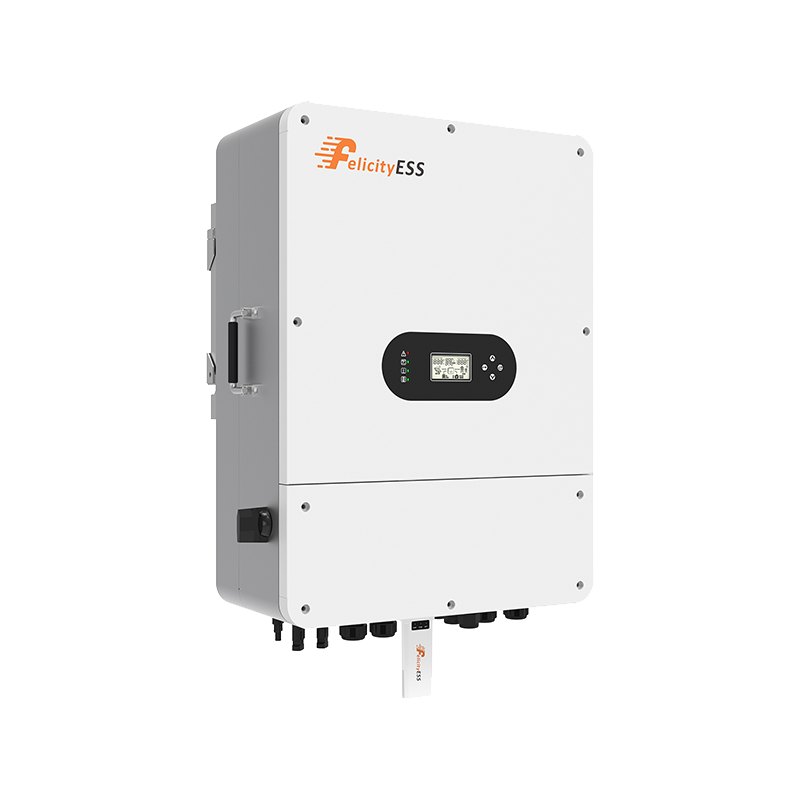

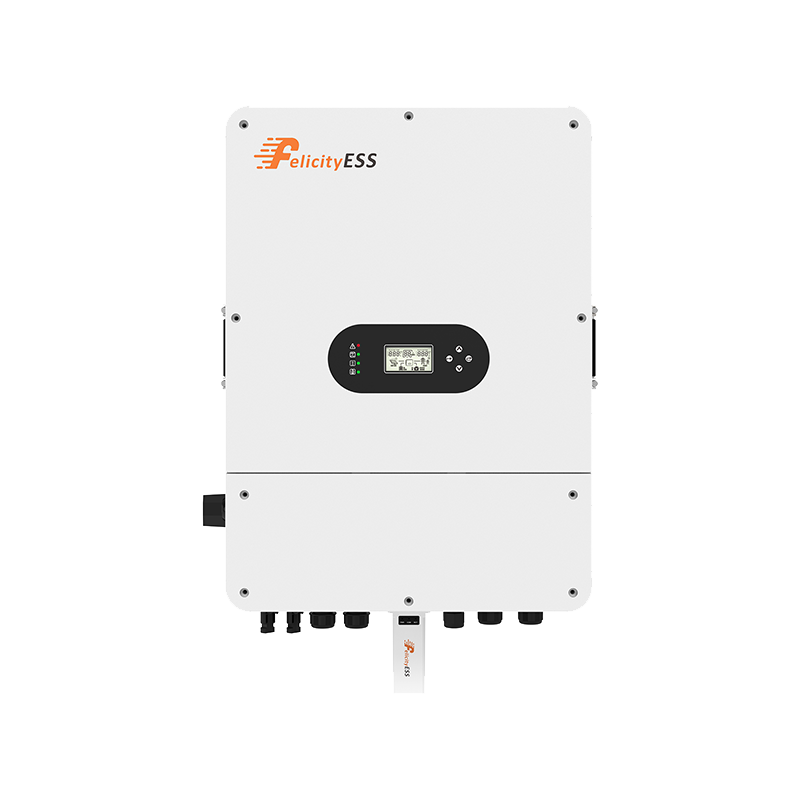

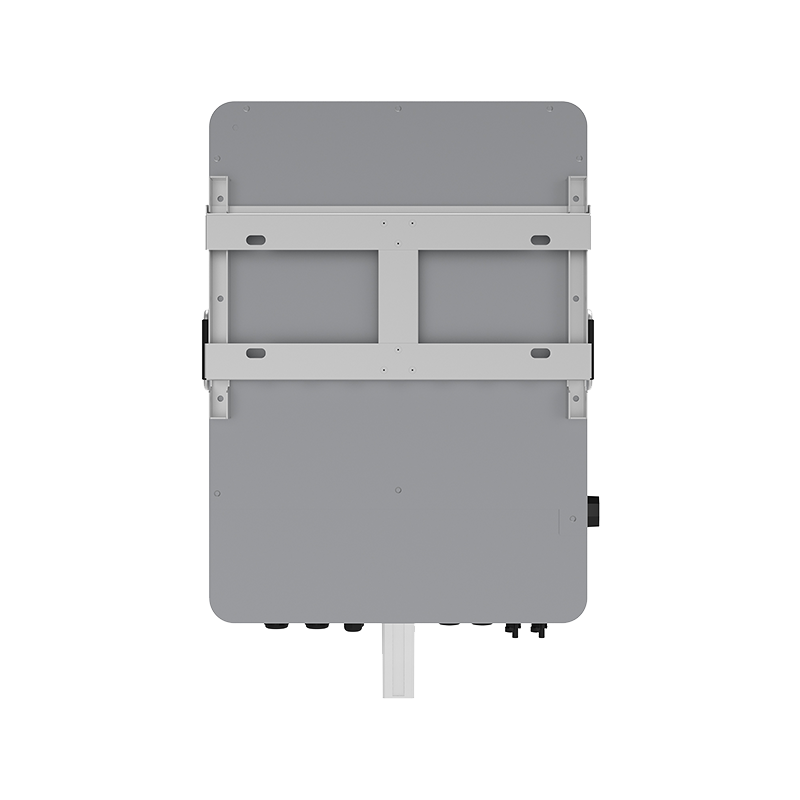

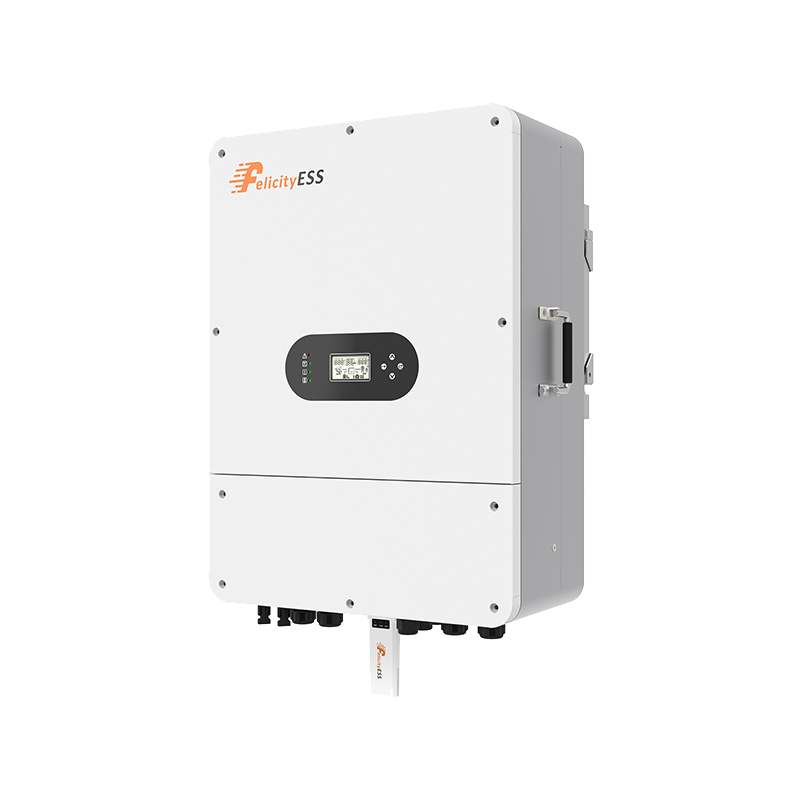

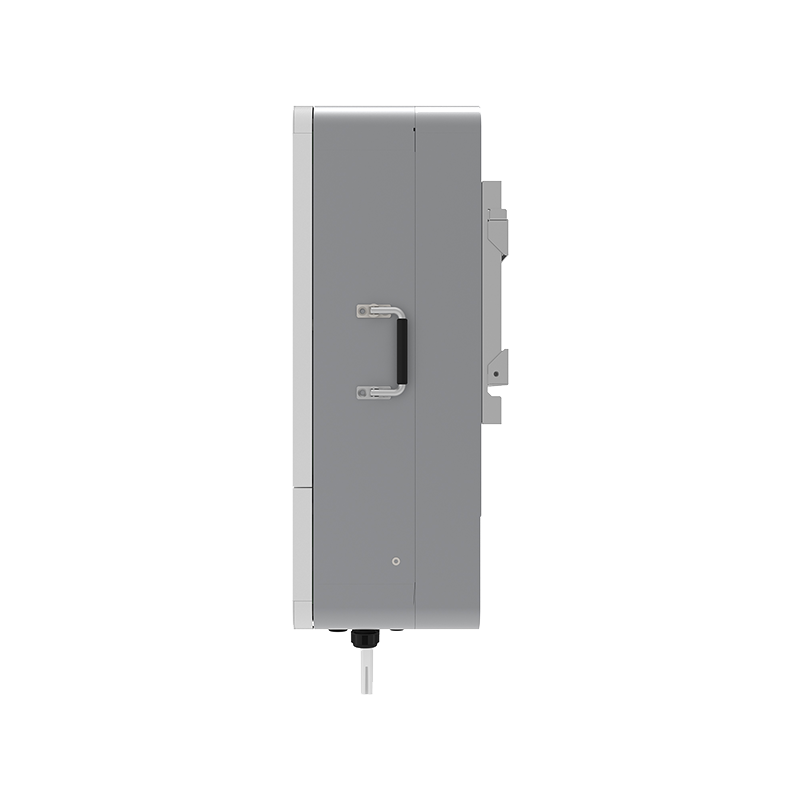

10kW Solar Inverter (T-REX-10KLP3G01)

FelicityESS T-REX-10KLP3G01 is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging,AC/solar charging, and acceptable input voltage based on different applications.

Advantages:
• Self-consumption and feed-in to the grid.
• Auto restart function applicable.
• Programmable supply priority for solar, battery or grid.
• Programmable multiple operation modes: On grid, off grid and backup.
• With power limit function, prevent excess power overflow to the grid.
• Supporting WiFi monitoring.
• 2 MPP trackers, 1 string per MPP tracker.
• 1 battery input connection port.
• Wide battery voltage input range (40V~60V), max. charging and discharging current 200A.
• Support storing energy from diesel generator.
• The off-grid switching time is within 20ms.
• Support multi working modes: General mode, Backup mode, ECO mode, Zero Export To Load, Zero Export To CT.
• IP65 protection level.
