Cworth Energy
Batteries

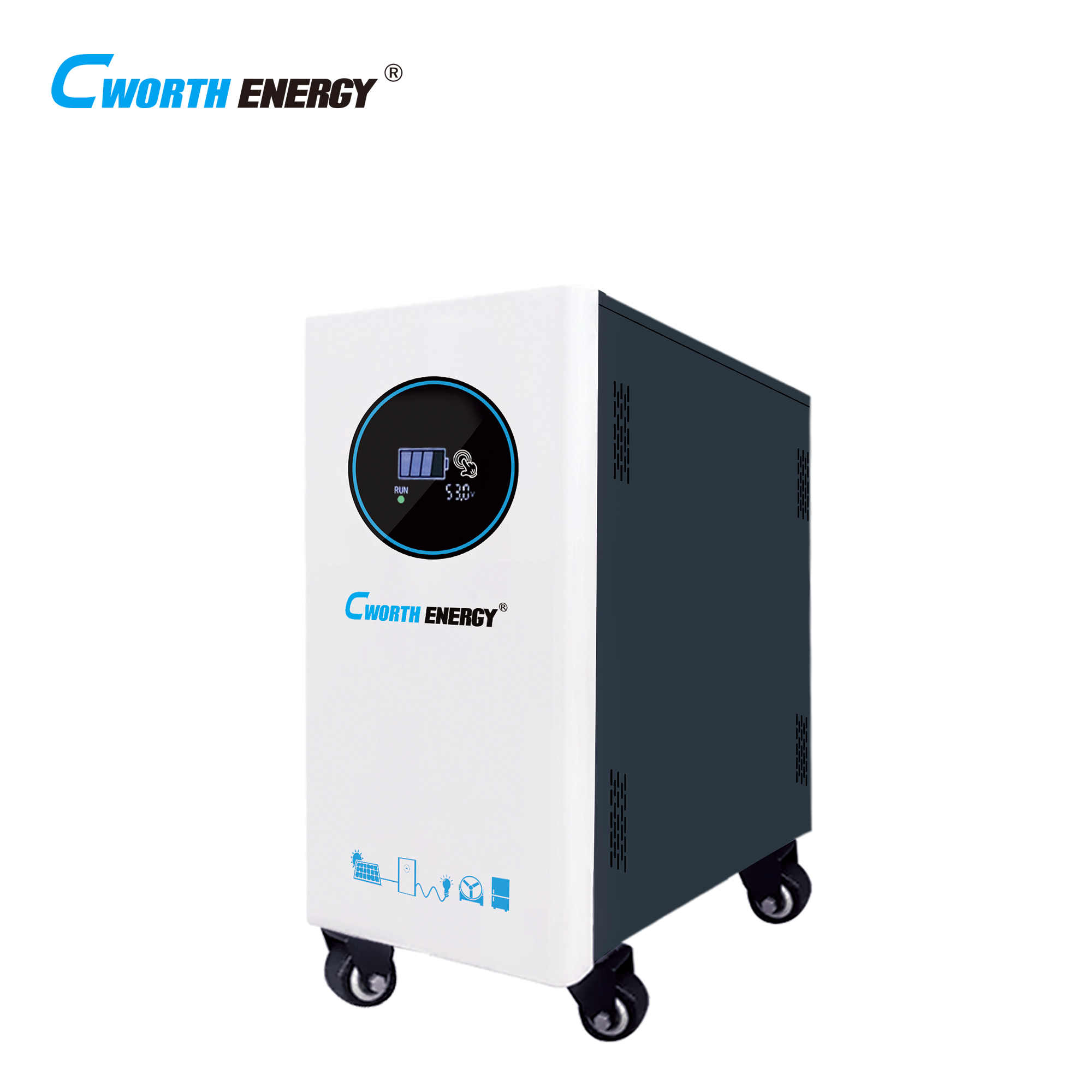

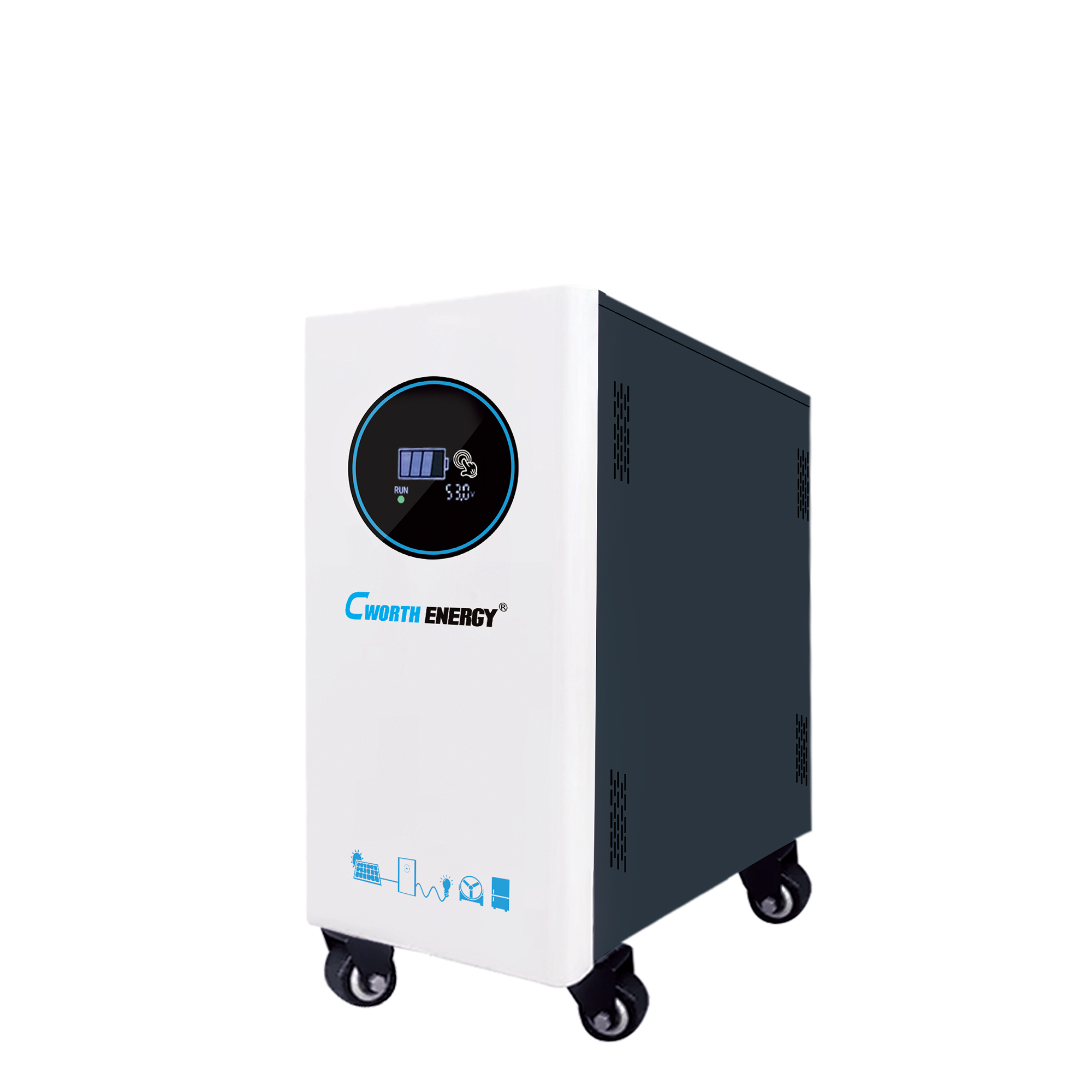

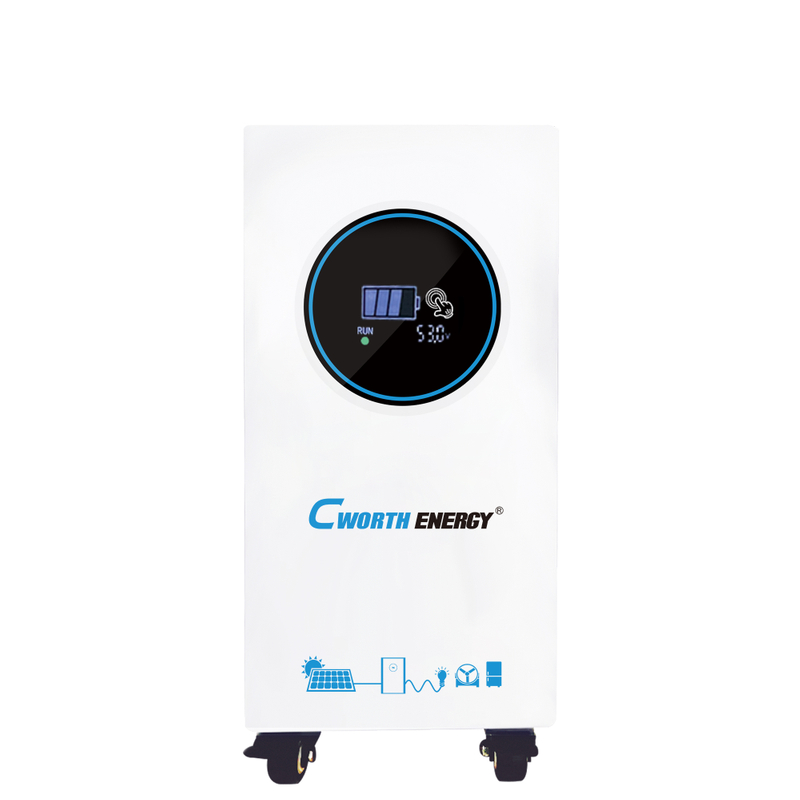

LiFePO4 Battery LBF-48400C
Product details
Specifications: • Model: CE-LBF-48400C • Capacity: 20KWH • Voltage: 48V • Normal voltage: 51.2V • Normal voltage range: 48-57.6V • Charge cut-off voltage: 57.6V • Discharge cut-off voltage: 48V • Max. Charge & discharge current: 200A • Recommend Charge & discharge current: ≤100A • Normal output power: 5120W • Max. Output power: 10240W • Parallel connection amount: 1-6 • Ingress protection: IP21 • Cycle times: ≥6000@80% DOD, 25°C, 0.5C • Working temperature: -10~60℃ • Net weight: 135kg • Product dimension: 700*380*725mm • Model: CE-LBF-48400C • Capacity: 20KWH • Voltage: 48V • Normal voltage: 51.2V • Normal voltage range: 48-57.6V • Charge cut-off voltage: 57.6V • Discharge cut-off voltage: 48V • Max. Charge & discharge current: 200A • Recommend Charge & discharge current: ≤100A • Normal output power: 5120W • Max. Output power: 10240W • Parallel connection amount: 1-6 • Ingress protection: IP21 • Cycle times: ≥6000@80% DOD, 25°C, 0.5C • Working temperature: -10~60℃ • Net weight: 135kg • Product dimension: 700*380*725mm
