Specifications:
• Model: CE-M8048
• Maximum Battery Current: 80A
• Battery Type: Use-Defined/AGM/FLD/LIB
• System Voltage: 12V/24V/48V DC(Auto detection)
• PV Start-up Voltage: 25
• Maximum Solar input Voltage: 200V
• PV Array MPPT Voltage Range: 25/30/60V-180VDC(For 12V/24V/48V-system)
• Maximum Solar panel input Power: 12V-1130W
• Charging Algorithm: 3-Step
• Charging stages: Bulk, Absorption, Float
• Operation Temperature Range: -25°C-60°C
• Humidity: 0%-90%
• Maximum Efficiency: ＞98%
• Net Weight: 4.2kg
• Product Dimension: 280x178x122mm
• Model: CE-M8048
• Maximum Battery Current: 80A
• Battery Type: Use-Defined/AGM/FLD/LIB
• System Voltage: 12V/24V/48V DC(Auto detection)
• PV Start-up Voltage: 25
• Maximum Solar input Voltage: 200V
• PV Array MPPT Voltage Range: 25/30/60V-180VDC(For 12V/24V/48V-system)
• Maximum Solar panel input Power: 12V-1130W
• Charging Algorithm: 3-Step
• Charging stages: Bulk, Absorption, Float
• Operation Temperature Range: -25°C-60°C
• Humidity: 0%-90%
• Maximum Efficiency: ＞98%
• Net Weight: 4.2kg
• Product Dimension: 280x178x122mm

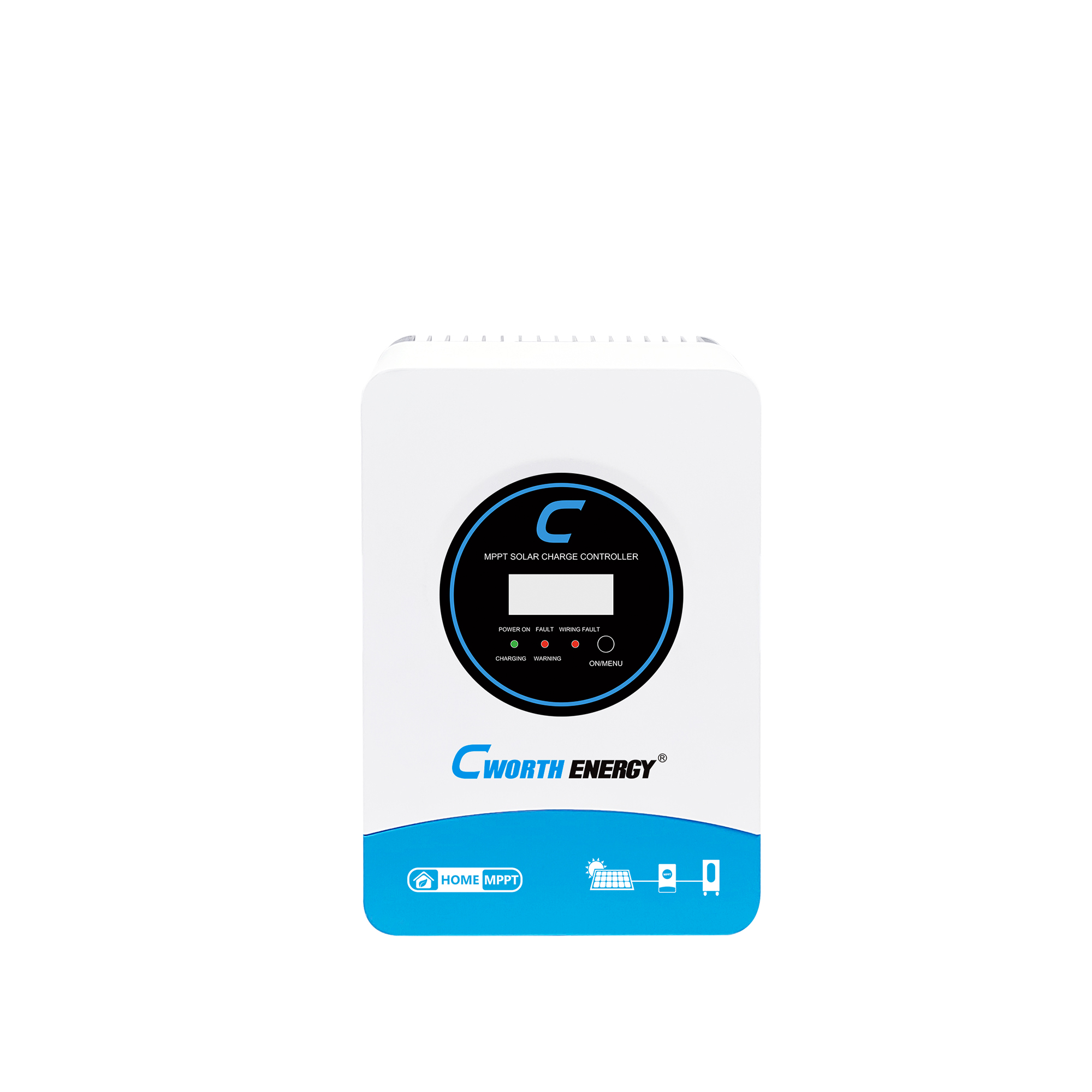

80A MPPT Solar Charge Controller Cworth energy

Product details
